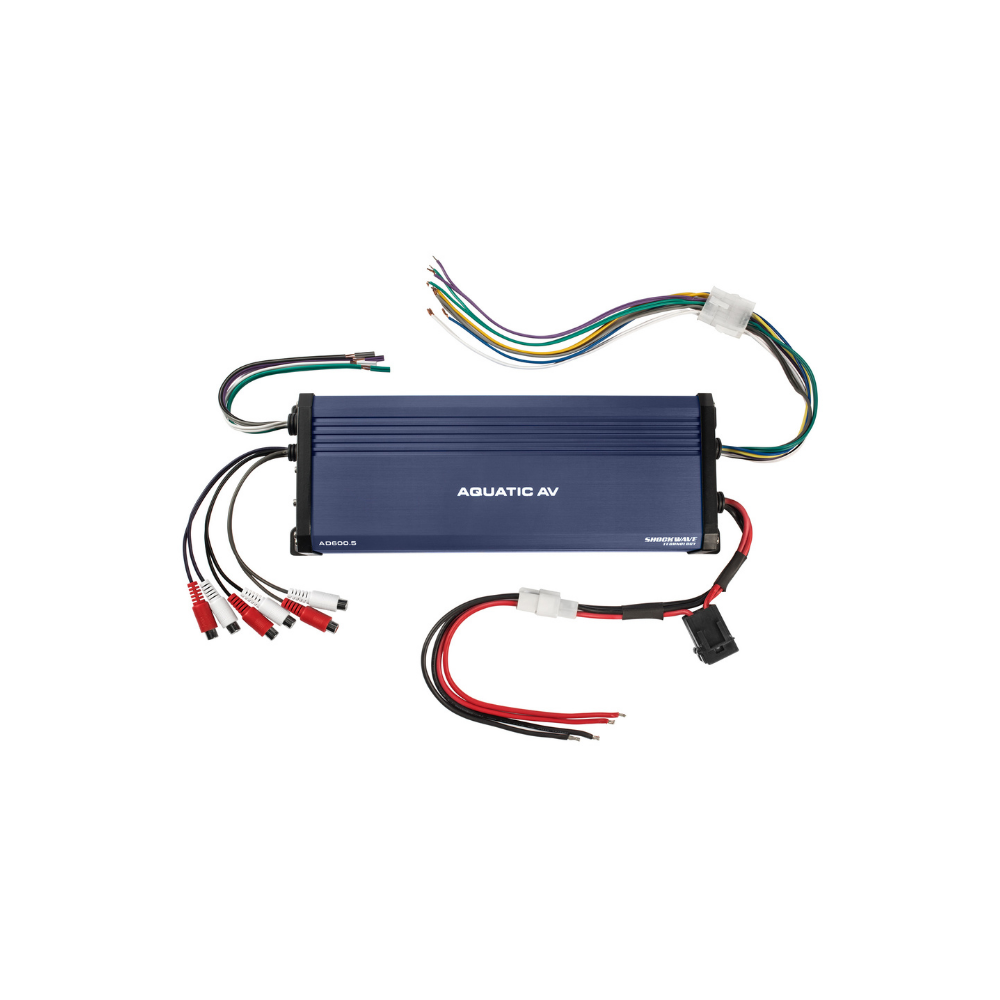

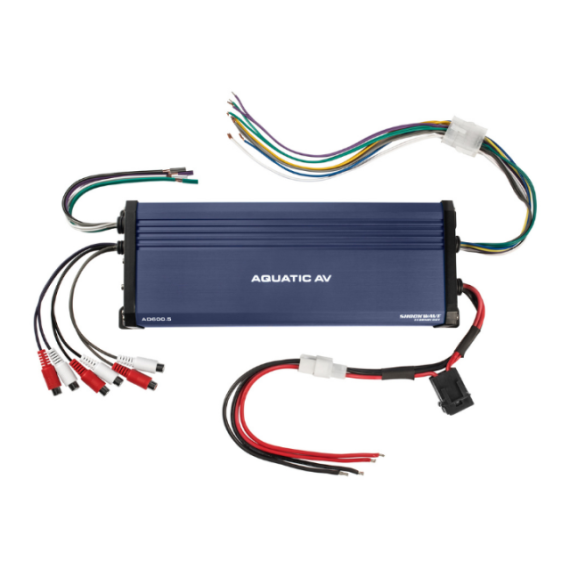

SPECIFICATIONS
Type: Class-D Digital Amplifier
Output Modes: Mono, Stereo, Bridge
Waterproof: Yes - IP65
Conformal Coated PCB: Yes
Heavy Duty Waterproof Connectors: Yes
Input Channels: 5x RCA
Speaker Level Input: 5 channels
Output Channels: 5/4/3
Input Impedance: 22k (RCA), 470 Ohms (speaker)
Output Impedance (per channel): 2 Ohms / 4 Ohms
Power Output (max): 600W
Power Output (max) @ 4 Ohms, THD 1%: 4x 50W + 1x 200W
Power Output (max) @ 2 Ohms, THD 1%: 4x 75W + 1x 300W
Power Output - Bridged @ 4 Ohms, THD 1%: 2x 150W
S/N (A-weighted, 1W @ 4 Ohms): 70dB
Frequency Response: 10-20kHz (1CH to 4CH), 10-250Hz (5CH)
Channel Separation: 48dB
Input Sensitivity (Low Level): 200mV to 4V
Input Sensitivity (High Level): 600mV to 10V
Bridge Mode: Yes (CH1 - CH4)
Bass Boost Adjustment: Variable 0 to +18dB (Sub CH)
Bass Boost Frequency: 50Hz
High Pass Electronic Crossover (12dB/Oct.): Variable 50 - 250Hz
Low Pass Electronic Crossover (12dB/Oct.): Variable 50 - 250Hz
Current Draw: <2mA standby
Gain Control Type: Variable Gain Control
Ground Loop Isolation Input Circuit: Yes
Allowable Battery Voltage 10.8V - 15.6V
Power Fuse: Yes in Power Cable
Additional Features: Nickel plated connectors, LED Indicator Remote, Turn-On Turn-On/Off Muting Circuit (Soft Mute)
