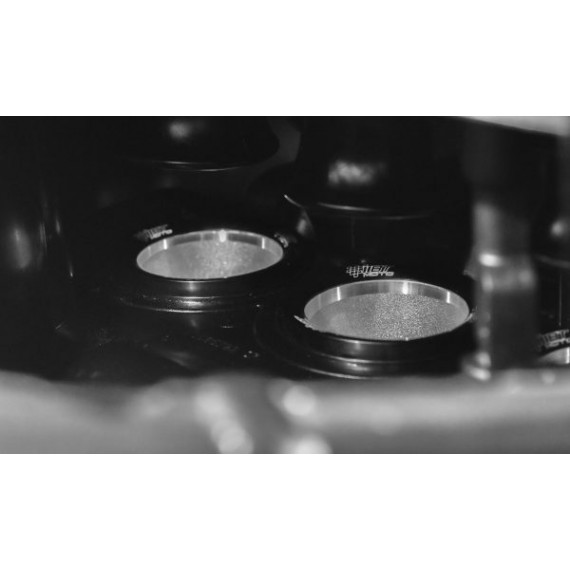

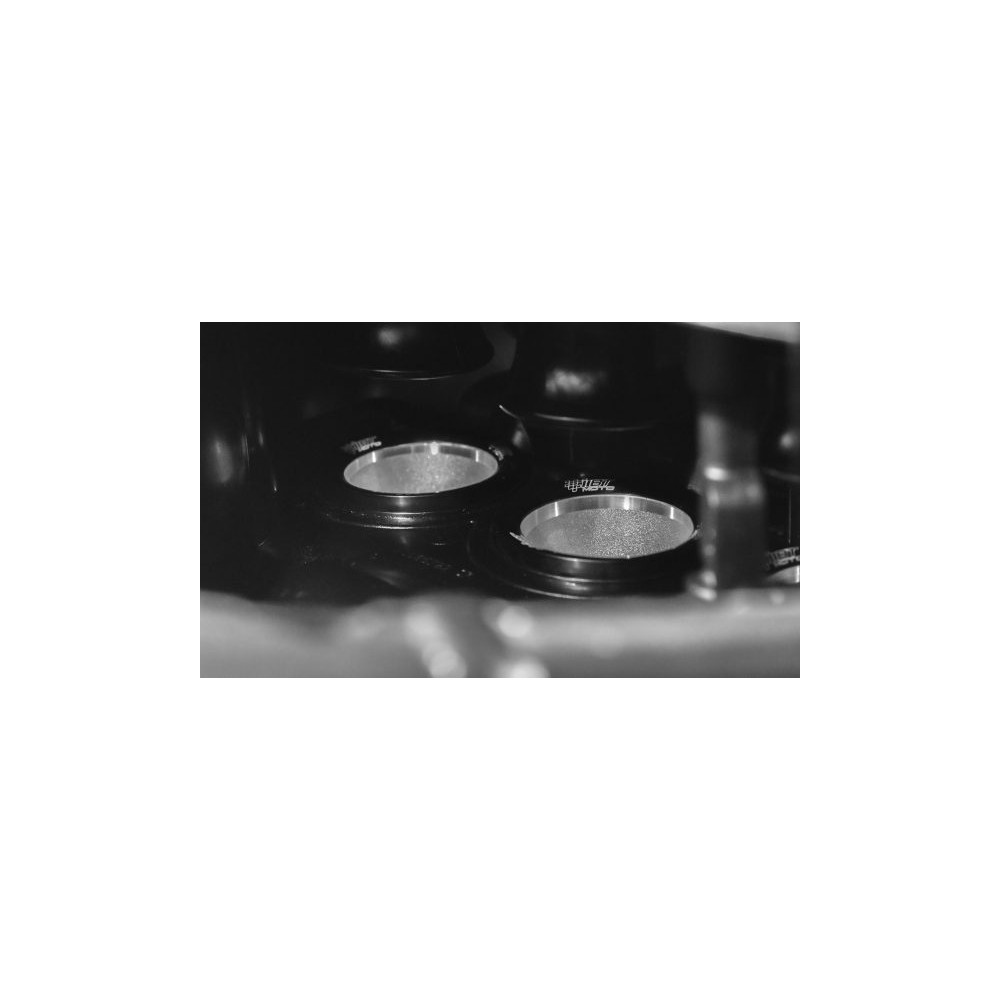

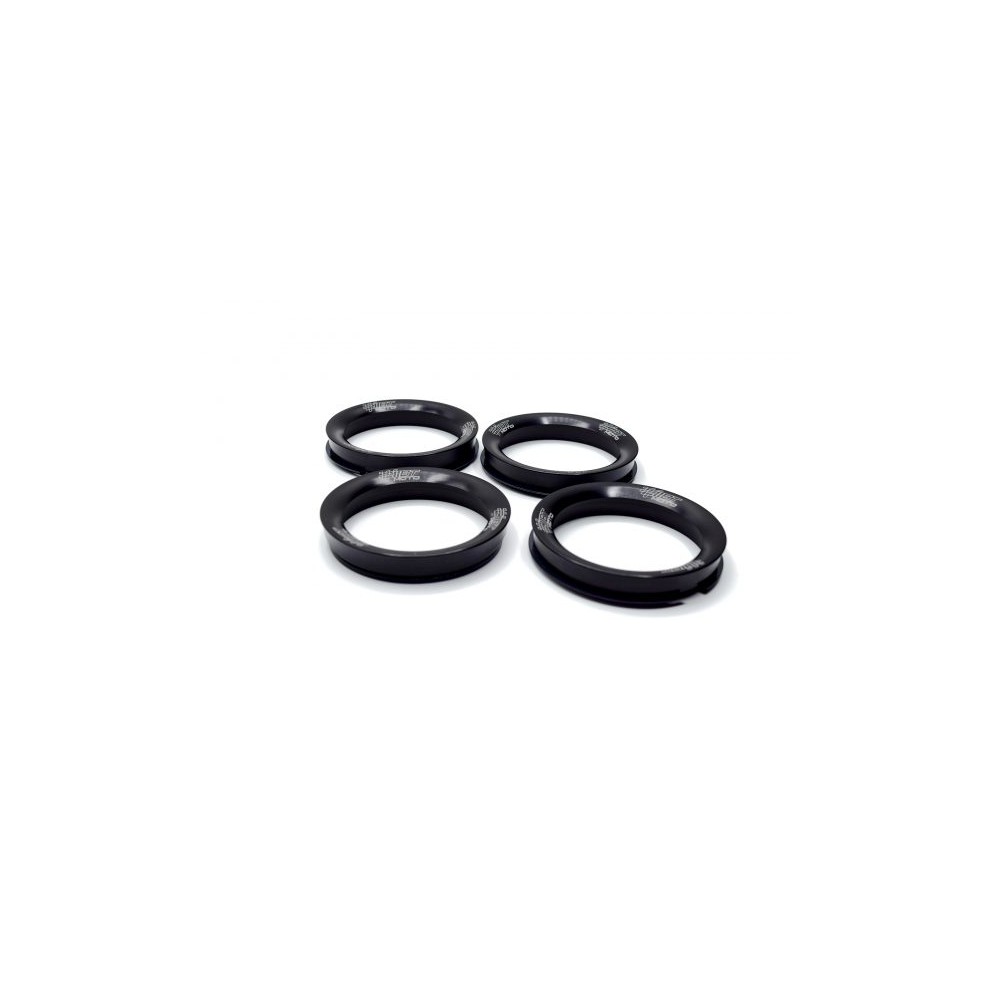

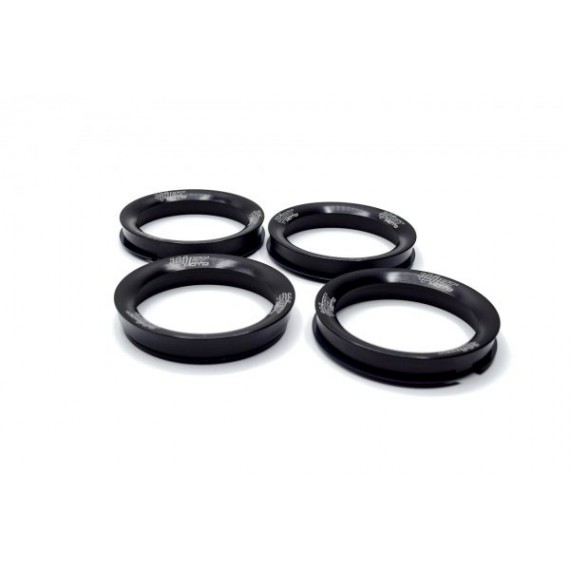

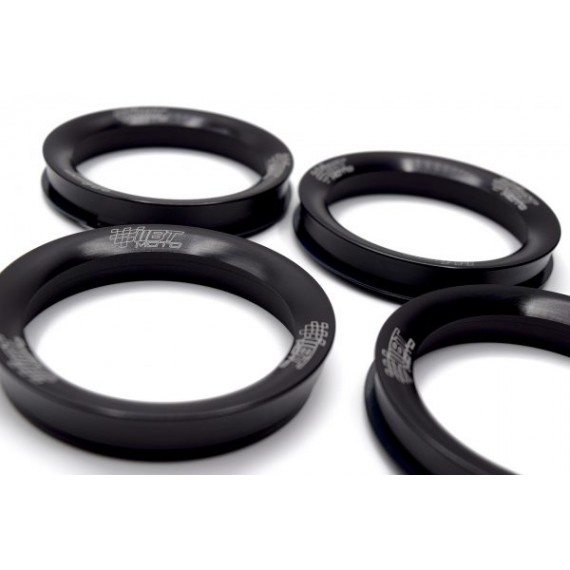

Finally, after over a year of in-house research and development, a proper velocity stack for the 2014-2020 BMW S1000R / S1000XR. While an extremely popular modification with Japanese bikes, BMW bikes always missed the mark with their adjustable factory geometry and intricate airbox from the factory.

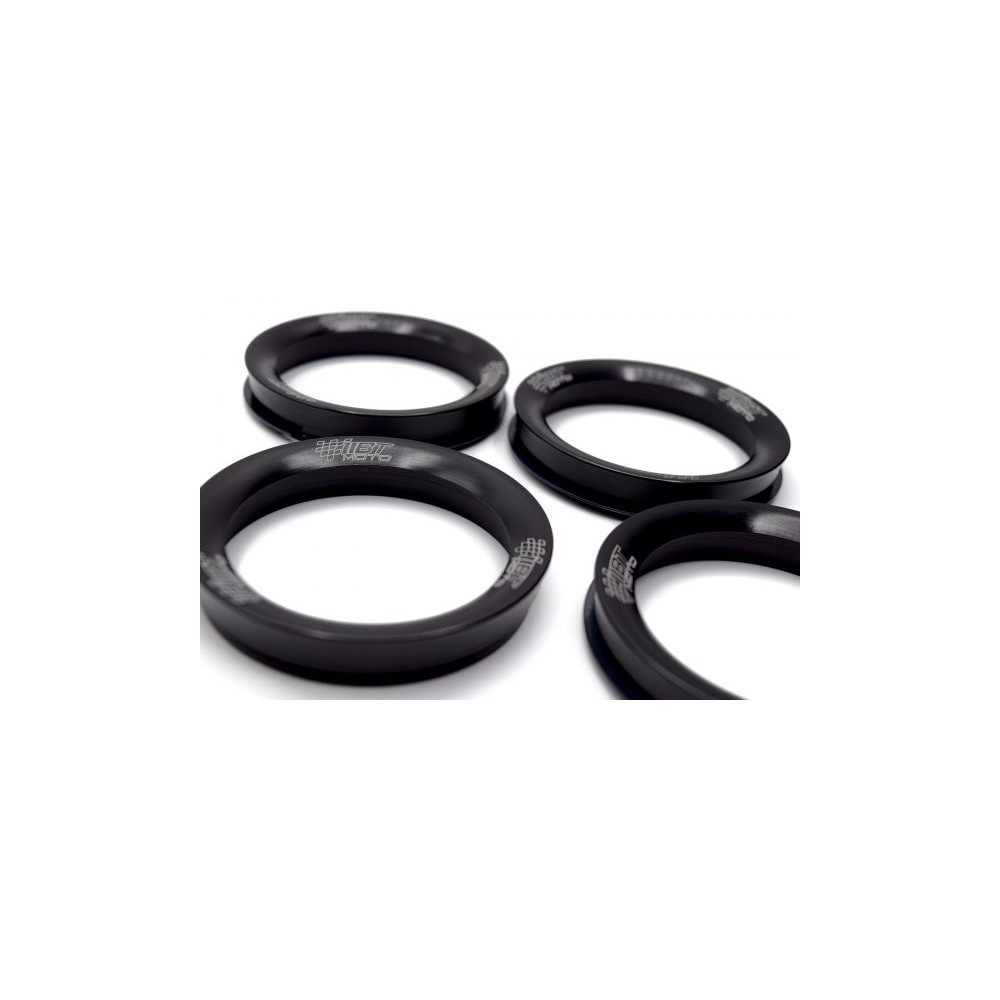

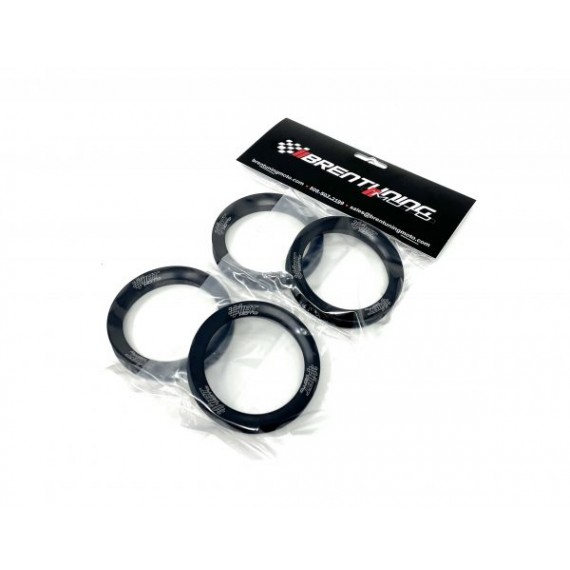

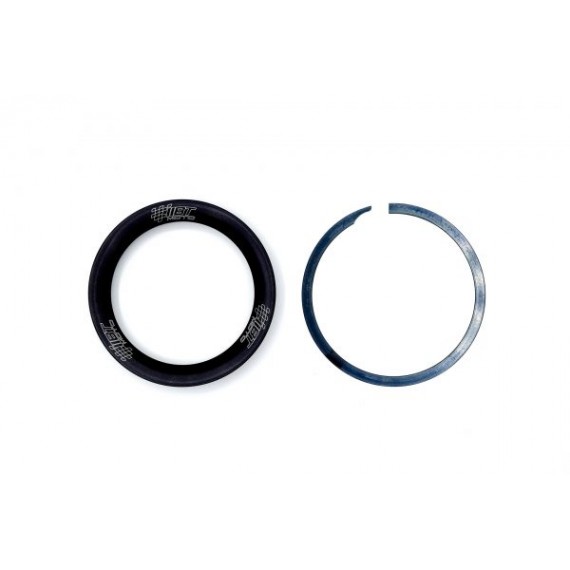

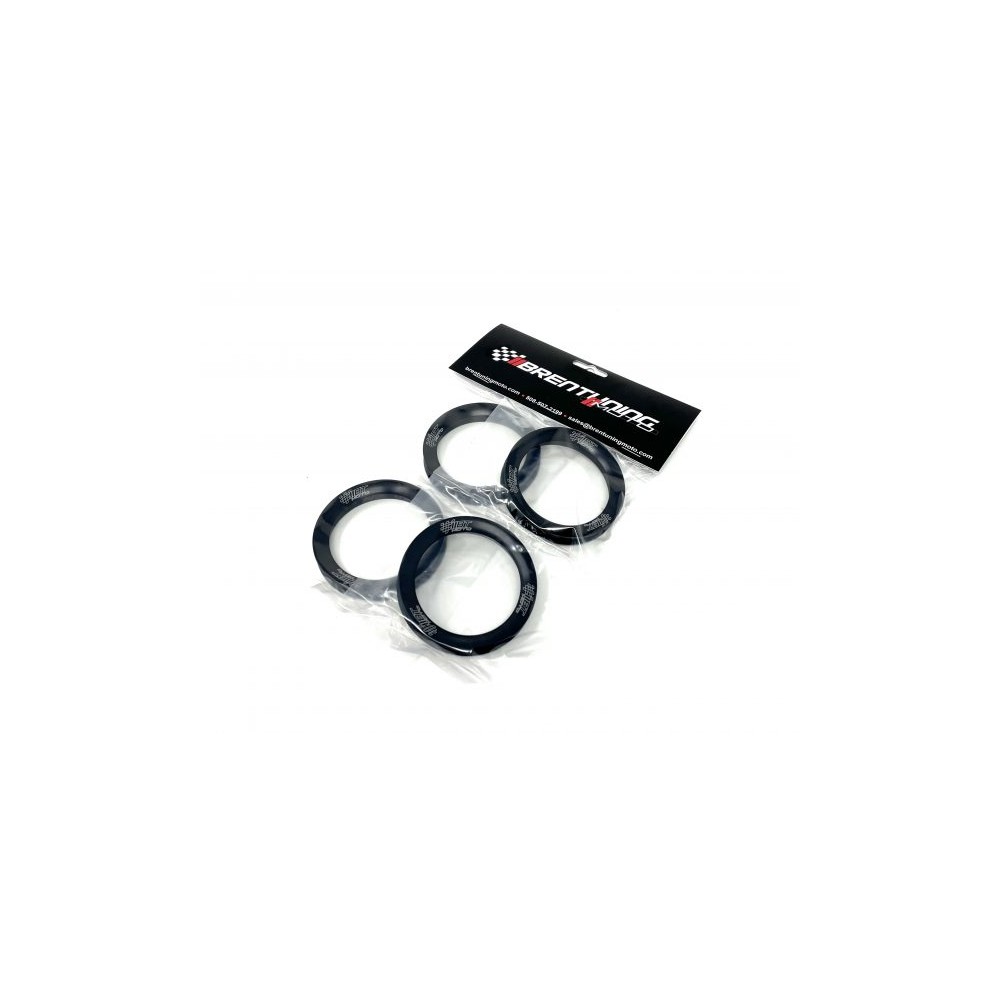

Finally, after over a year of in-house research and development, a proper velocity stack for the 2014-2020 BMW S1000R / S1000XR. While an extremely popular modification with Japanese bikes, BMW bikes always missed the mark with their adjustable factory geometry and intricate airbox from the factory.
As some may notice, BMW has changed the airbox several times over the past decade and offered a racing airbox for their HP4 Race series and WBSK bikes. Some of these changes were introduced for more midrange, top-end, race use and so on. After studying the differences of all these units, before and after data, and dyno data logging, we were able to create a scalable solution for use with the factory airbox.

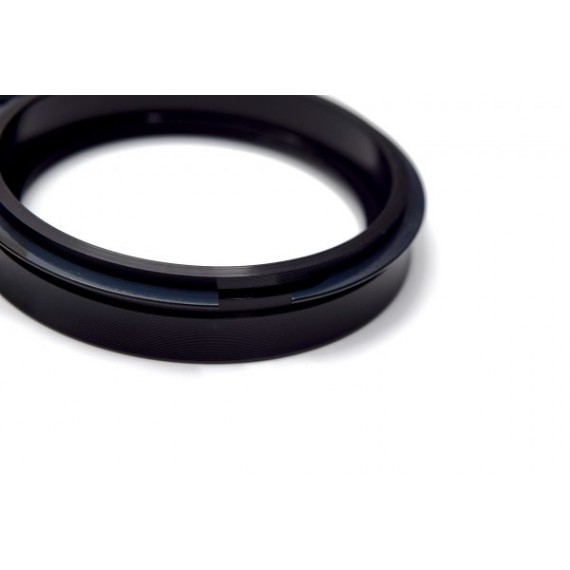

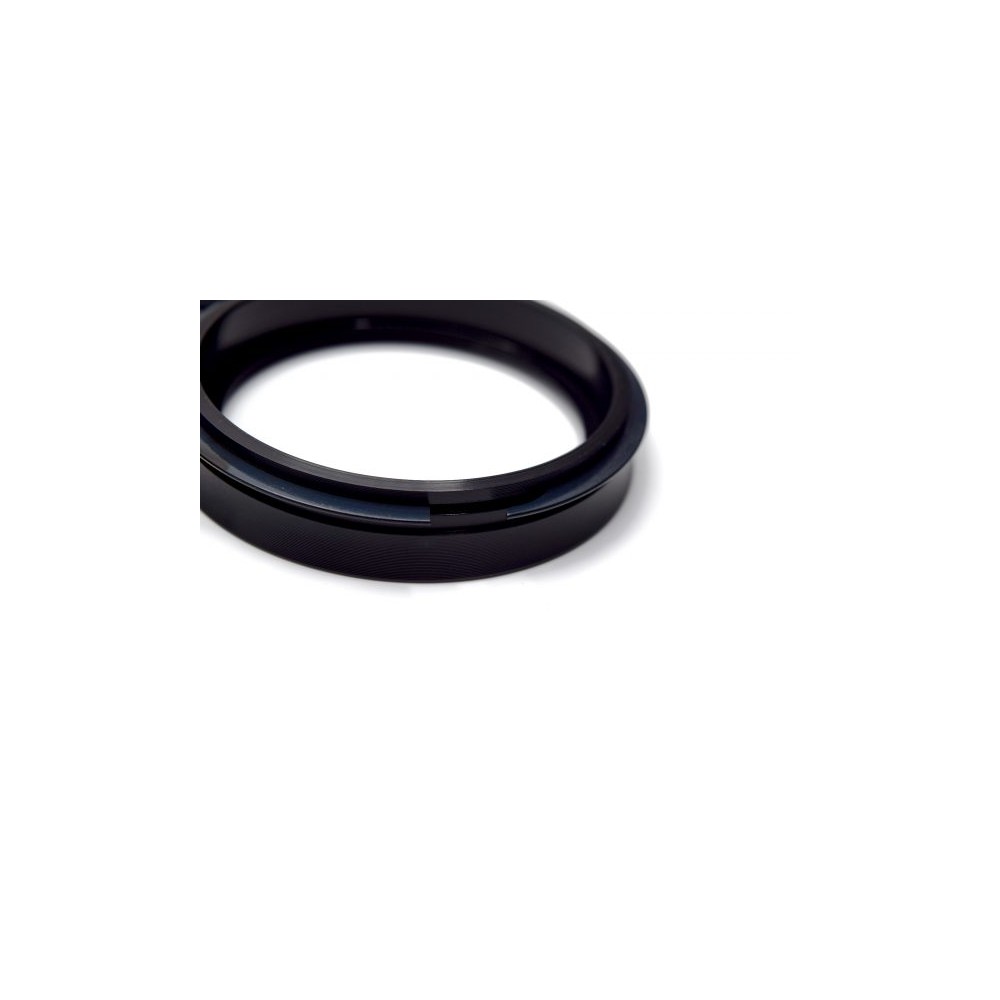

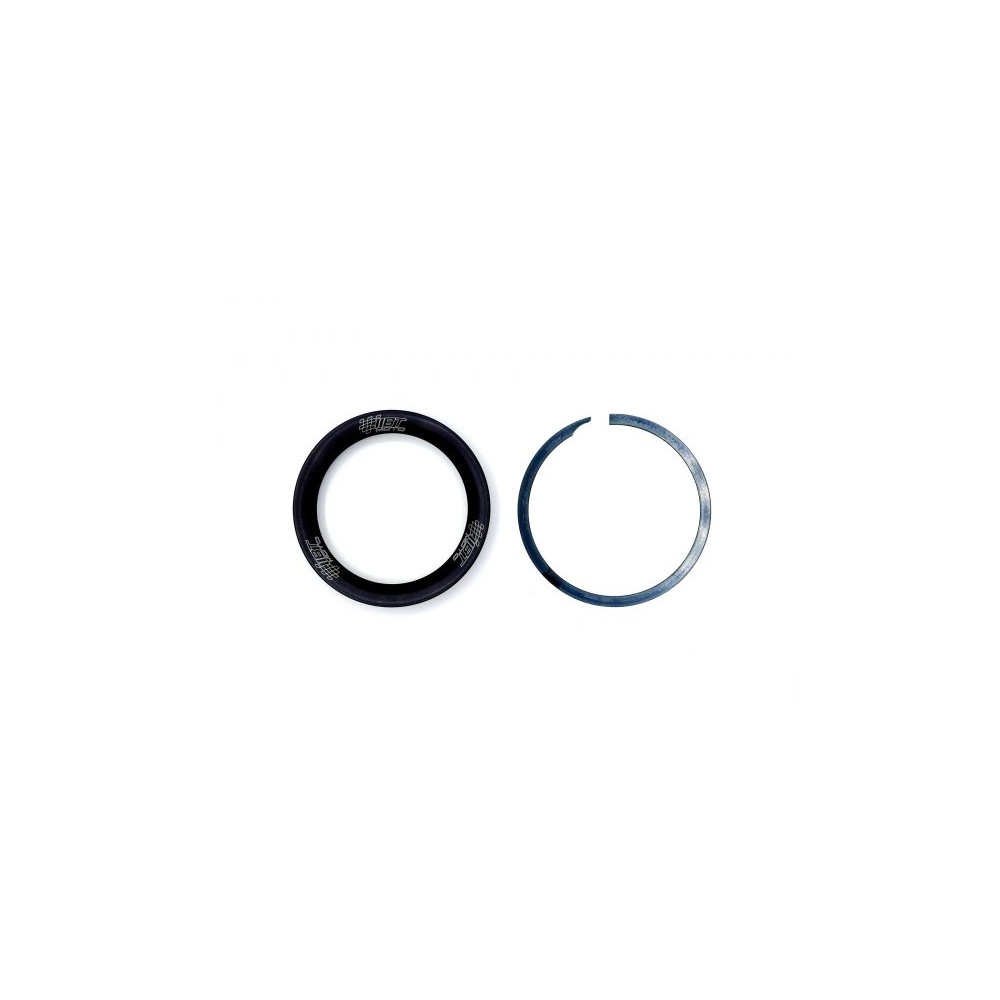

We studied the current market and tested other 3rd party velocity stacks and found flaws that needed addressing. What we found was the current market offerings are pretty disappointing. They appear to be made without any sort of testing or consideration for long-term durability. These 3rd party stacks utilize the OEM rubber grommets and tend to collapse under extreme RPM’s and high airflow. Due to this we avoided this rubber gasket design. The other 3rd party stacks appeared to lose power and did not alter the air/fuel ratio at all. This is a telltale sign that it did not change airflow. Our in-house dyno confirmed our suspicions as these stacks did not make more power than the stock configuration.
For this product to work as intended your motorcycle will require custom tuning. It’s roughly 7% at high RPM, interpolated to 18% more fuel at the RPM limiter as a baseline. The product will work with a stock motorcycle. DO NOT buy this product without also purchasing our revised flash, AFR (air/fuel ratio) verification or custom tuning (extra fee). Power gains are determined by proper AFR, so do your due diligence and not a “set and forget” it. Ideally for or those who are flashed and do their own fuel tweaking.
2014-2019 BMW S1000XR
2014-2020 BMW S1000R
RED = Stock Velocity Stacks (93 Pump Gas) – 163whpWHP / 91WTQ
BLUE = BT Moto Velocity Stacks (93 Pump Gas) – 179WHP / 93WTQ
You can see from the dyno chart below the peak gains are HUGE while the midrange loss is extremely minimal (2-3HP). See the BT Moto stack power curve, there’s a significant amount of powerband where the stacks make more power, most notably the top end. Peak torque is increased by 2 as well.
INSTALL TIME: 1-1.5 hours
“Cuban Rider” on YouTube is a longtime customer of ours and wanted to test quantifiable and independent results from his own testing on his BMW S1000XR.
