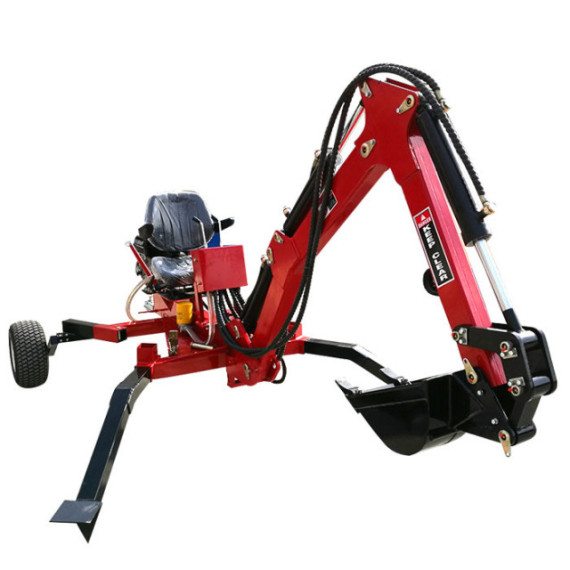

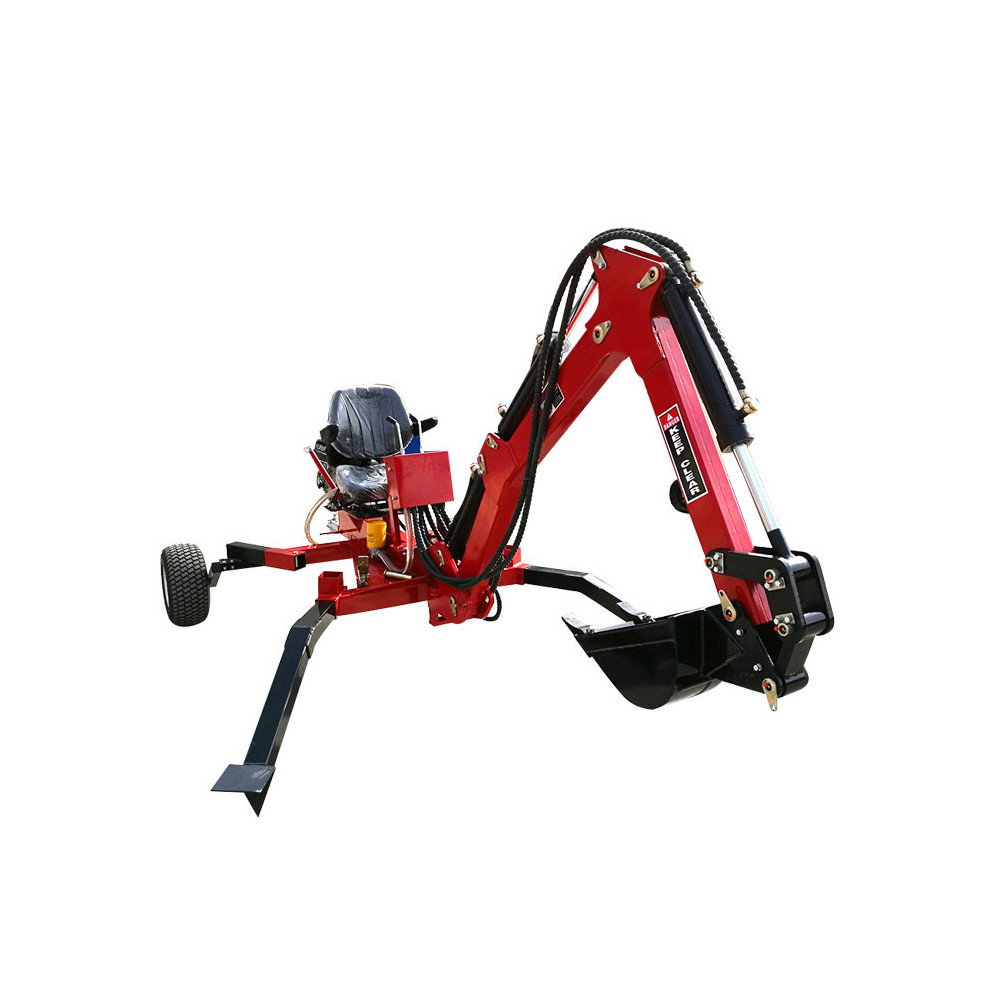

Bronco Backhoe Digger 2020 for ATV 13.5hp B&S, 30cm bucket

Bronco Backhoe Digger 2020 with it?s 13.5hp strong B&S engine is the perfect tool for all kinds of digging when space is an issue and
were a bigger, heavier excavator might ruin the lawn and bushes in your backyard.

mso-ascii-theme-font:minor-latin;mso-fareast-font-family:Calibri;mso-fareast-theme-font:
minor-latin;mso-hansi-theme-font:minor-latin;mso-bidi-font-family:"Times New Roman";
mso-bidi-theme-font:minor-bidi;mso-ansi-language:EN-GB;mso-fareast-language:
EN-US;mso-bidi-language:AR-SA lang=en-SE>line-height:107%;font-family:"Calibri",sans-serif;mso-ascii-theme-font:minor-latin;
mso-fareast-font-family:Calibri;mso-fareast-theme-font:minor-latin;mso-hansi-theme-font:
minor-latin;mso-bidi-font-family:"Times New Roman";mso-bidi-theme-font:minor-bidi;
mso-ansi-language:#0C00;mso-fareast-language:EN-US;mso-bidi-language:AR-SA lang=en-SE>Despite its compact design and size, it can handle significantly more and
larger jobs than you might think at first glance. Digger 2020 comes with a 30cm bucket as standard with a digging depth of up to 200cm.
More bucket sizes available. Ordered separately.
Two lever hydraulic valve makes the excavation simple and efficient.
When towing the backhoe the wheels should be mounted in the rear and when digging in the front.

Data:

Engine: Briggs & Stratton 13.5hp
Fuel: Petrol
Manual pull start
Turning ratio: About 140 degrees
Digging depth: Around 200cm
Weight: About 550kg
Working area: Around 245cm
Loading height: 140cm
Load capacity without counterweight: 186kg
Load capacity with counterweight: 332kg
30 cm bucket as standard
Engine oil: SG15W/40, 2 litres
Spark plug: B&S 798615, NGK BPR6ES, Champion RC12YC, Torch F6TC
Hydraulic oil: HM32 or HM46, 20 litres
Factory warranty: 12 months
Delivered without oil

Shipping crate dimensions (L x W x H): 2240x1000x850mm
Total length: 3250 mm
Width with wheels 2000 mm. Width of supports: 2170 mm. Width of main frame: 1110 mm
Max. height: 2340mm

Color code: RAL 3002 (Carmine Red)
We recommend hydraulic oil 553-83062 (20L) or 553-83061 (5L). Engine oil SAE 30: 553-83052 (1.5L).
