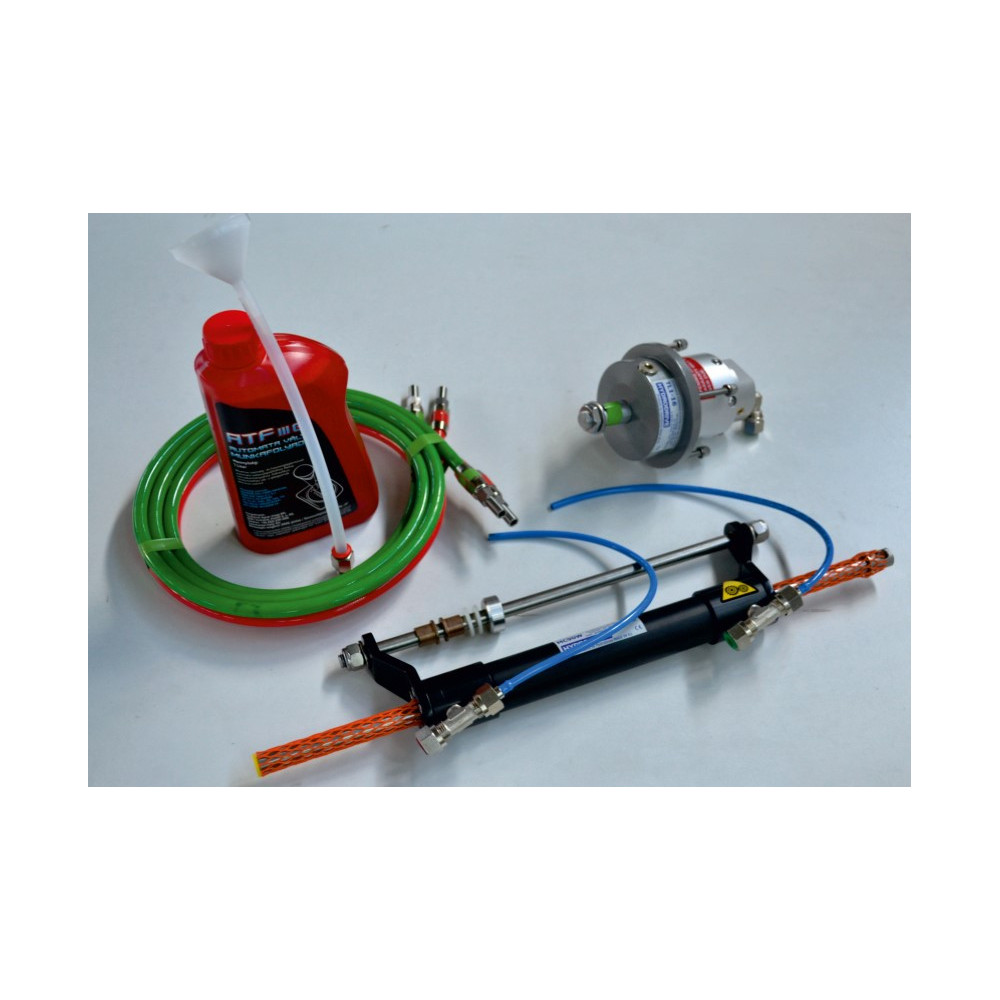

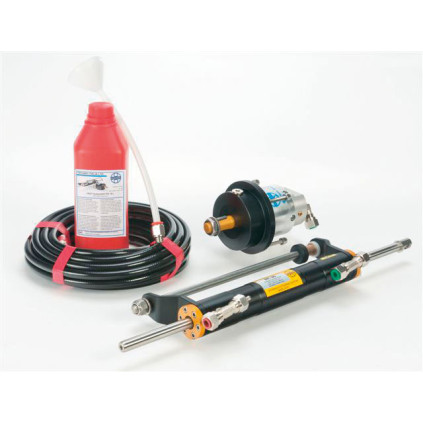

Sea-X Max 75 hydraulic steeringkit
Sea-X Max 75 hydraulic steeringkit

Sea-X Max 75 hydraulic steeringkit

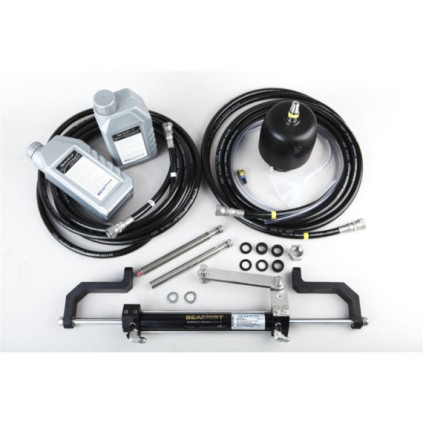

Seafirst Dual station kit MO100H
Seafirst MS250S hydraulic steeringkit
High Precision Hydraulic Pump: TL1-16, 16 cc pump, max 60 bar
Hydraulic cylinder: MC 75, 68 cc volume, stroke 202 mm
4,5+4,5 mt twin hose, 1 lt. hydraulic oil (ATF III G) (temp.+60?/-30?.)
Engine Arm not included

Turns: 4,4

Output force: 220 Kg
Torque: 46 Kgf
Max speed: 30 Kts (55 km/h)

  • Pump made by hardened , hot pressed aluminum

  • Adonized and painted pump house, manufactured by precision CNC

  • Cylinder made from cold drown, hardened adonized and painted aluminium

  • Professional application, high quality, innovative technology, high precision pump.

  • Universal fittings, Hydrodrive steering can be use every type of outboard engines.

  • Easy installation process

" "146790
Les merShow less
kr 4,392.00
På lager
Referanse:
127-3-100075
Produktdetaljer
127-3-100075
Sist vist
Sea-X Max 75 hydraulic steeringkit Sea-X Max 75 hydraulic steeringkit
Vis mer

Referanse: 127-3-100075
kr 4,392.00
High Precision Hydraulic Pump: TL1-16, 16 cc pump, max 60 barHydraulic cylinder: MC 75, 68 cc volume, stroke 202 mm4,5+4,5 mt twin hose, 1 lt. hydraulic oil (ATF III G) (temp.+60?/-30?.)Engine Arm not includedTurns:...
Kjøp
Del
16 andre produkter i samme kategori:
Seafirst MO350H hydraulic steeringkit
Vis mer

Referanse: 127-3-200350H-R1
kr 12,227.50
Steering kits includes: Front Mount Helm pump 25ccFront Mount Outboard cylinderHydraulic oil 1 liter x 2 bottles. SAE NO 15.Hydraulic Hose 3/8, 7 meter x 2pcsHelm pump fittings, Helm pump mounting hardware kit,...
Kjøp
Del

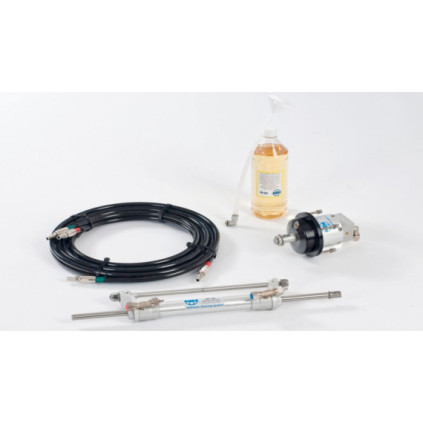

Sea-X Max 115 hydraulic steeringkit
Vis mer

Referanse: 127-3-100115
kr 5,192.00
Hydraulic pump: TL1-16 MRA, 16 cc pump, with NON-RETURN valve 4,5 turnsHydraulic cylinder: MC 115, 71 cc volume, stroke 210 mm5 mt twin hose, 1 lt. hydraulic oil (ATF III G) (temp.+60?/-30?.)Output force: 236...
Kjøp
Del

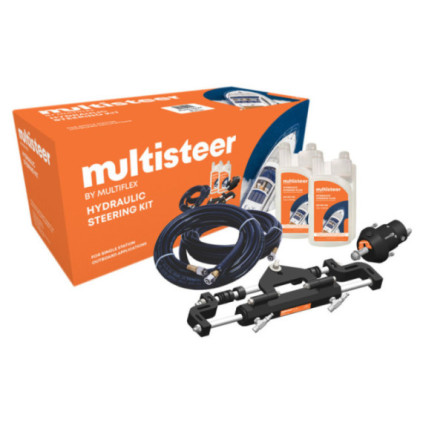

Hydraulic steering system Multiflex -115HP
Vis mer

Referanse: 502-OH-115
kr 6,698.75
Multiflex OH-115UHigh quality hydraulic steering system for outboards up to 115hp.Steering pump:Volume 16 cm3 | Max pressure 50 bar | non-return valve | 3/4 shaftCylinder:Volume 92,5 cm3 | Stroke length: 184 mm |...
Kjøp
Del

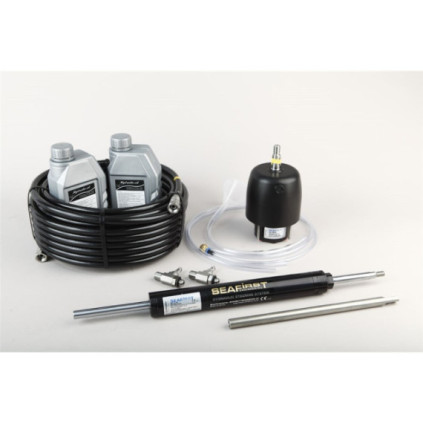

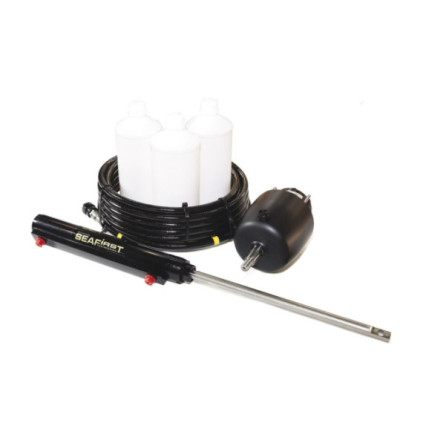

Seafirst MS250S hydraulic steeringkit
Vis mer

Referanse: 127-3-200250S-U1
kr 12,227.50
Steering kits include:Front Mountr helm Pump 30ccStern drive cylinder, UnbalancedHydraulic oil 1 liter x 3 bottles, SAE NO 15Hydraulic Hose 3/8, 20 meter x 1pcs, includes two reusable hose couplingHelm Pump fittings,...
Kjøp
Del

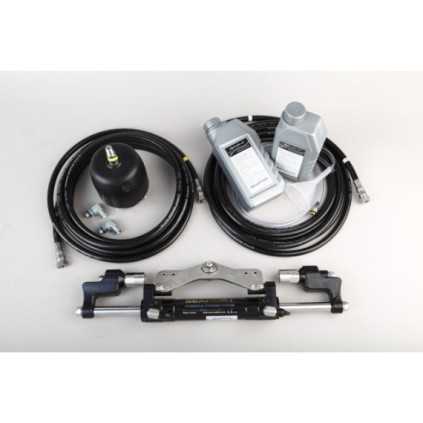

Seafirst MO350V hydraulic steeringkit
Vis mer

Referanse: 127-3-200350V-Y1
kr 12,227.50
Steering kits includes: Front Mount Helm pump 25ccFront Mount Outboard cylinderHydraulic oil 1 liter x 2 bottles. SAE NO 15.Hydraulic Hose 3/8, 7 meter x 2pcsHelm pump fittings, Helm pump mounting hardware kit,...
Kjøp
Del

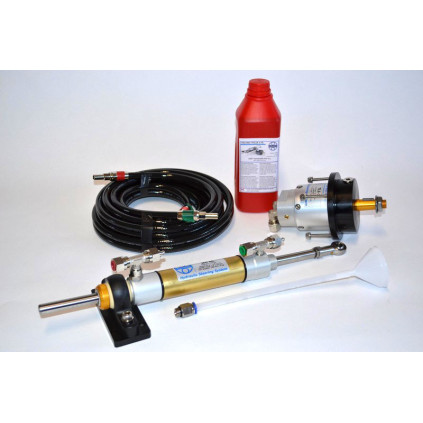

Sea-X Inboard max 10m hydraulic steeringkit
Vis mer

Referanse: 127-3-100200
kr 7,650.00
High Precision Hydraulic pump: TL1-16, 16 cc pump., 5 turnsHydraulic cylinder: MC 50, 83 cc volume, stroke 150 mm5+5mt twin hose, 1 lt. hydraulic oil (ATF III G) (temp.+60?/-30?.)Output force: 387 KgTorque: 58 KgfMax...
Kjøp
Del
