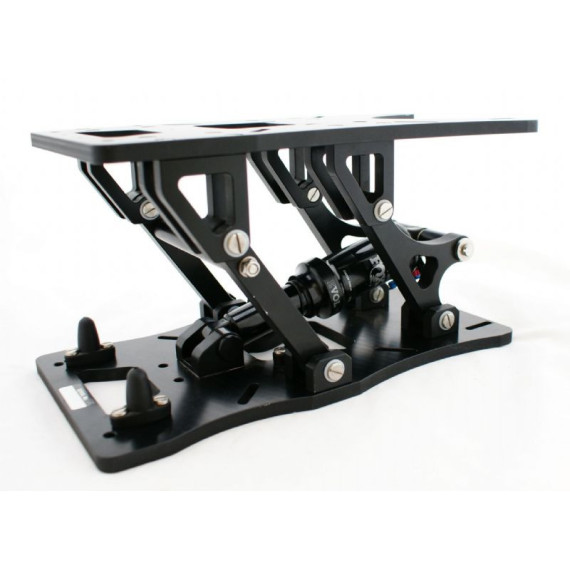

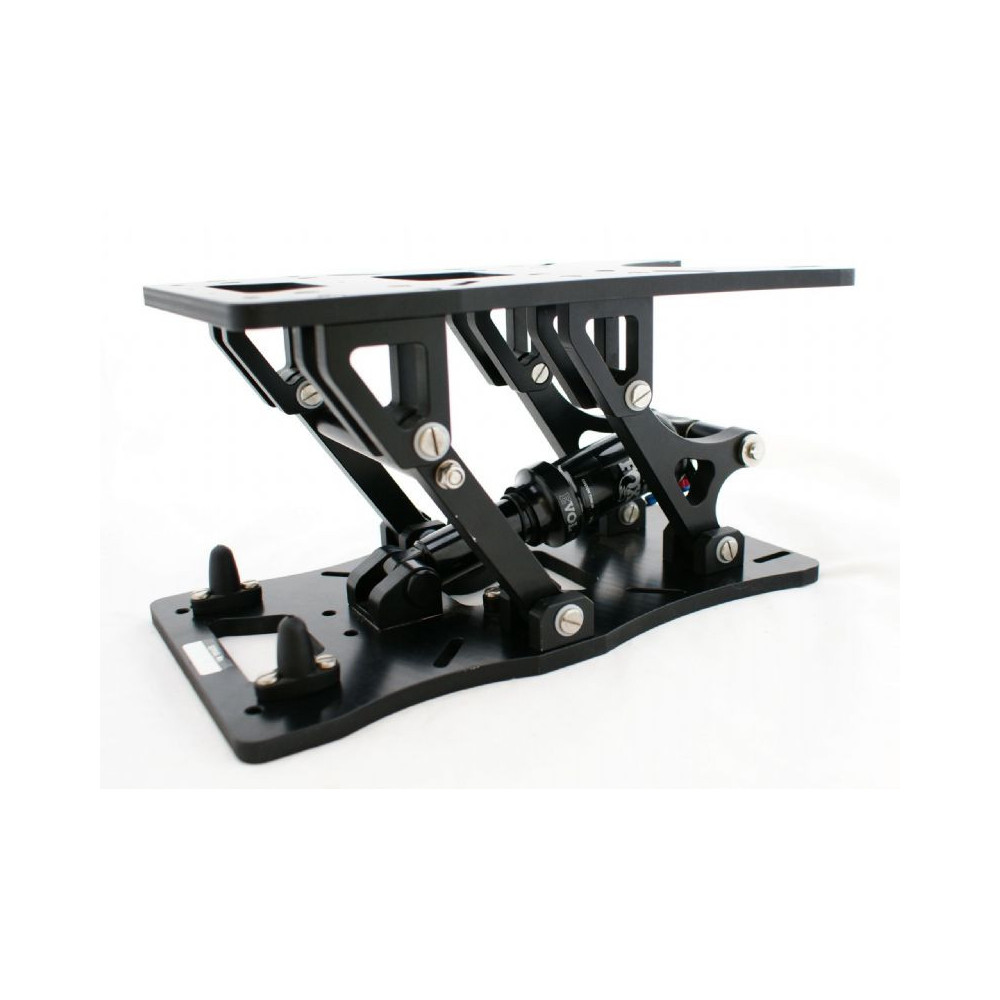

SHOCK-WBV P-Series shock mitigation (Pedestal)
P-Series for pedestal fitment
SHOCK-WBV reduces Whole Body Vibration (WBV) and increase comfort for boat users. The system offers built-in lateral stability for superb levels of comfort.
P-series has been designed specifically to fit on all standard pedestals and has pre-machined bolting slots to reduce fitting time to as little as 10 minutes.
Once in place it is simple to adjust for a wide range of passenger weights and sea conditions.
The P-series is lightweight and tough as it?s made from aerospace grade aluminium and 316 Stainless Steel. Precision machined aluminium tooling plate is used throughout the P-series as it has no flaws.
FOX Float EVOL Shock absorbers fitted as standard.
SHOCK-WBV is extensively tested. All parts, and designs, are rigorously tested with hundreds of hours on the water, and in drop test facility.
All SHOCK-WBV units are designed to be used by leisure and commercial users.
Total Length: 335mm
Total width: 180mm
Total height: 173mm
Compressed height: 101mm
Travel: 84mm
Vertical: 72mm
Horizontal: 43mm
Unit weight: 3,9 kg
