Referanse: 77-12191-1
kr 121,995.00
ATV Grapple crane 350-II Hydraulic Roll drive & Winch
ATV GRAPPLE CRANE 350-II Hydraulic Roll drive & Winch
ATV Grapple crane 350-II Hydraulic Roll drive & Winch
kr 121,995.00
Referanse:
77-12191-1

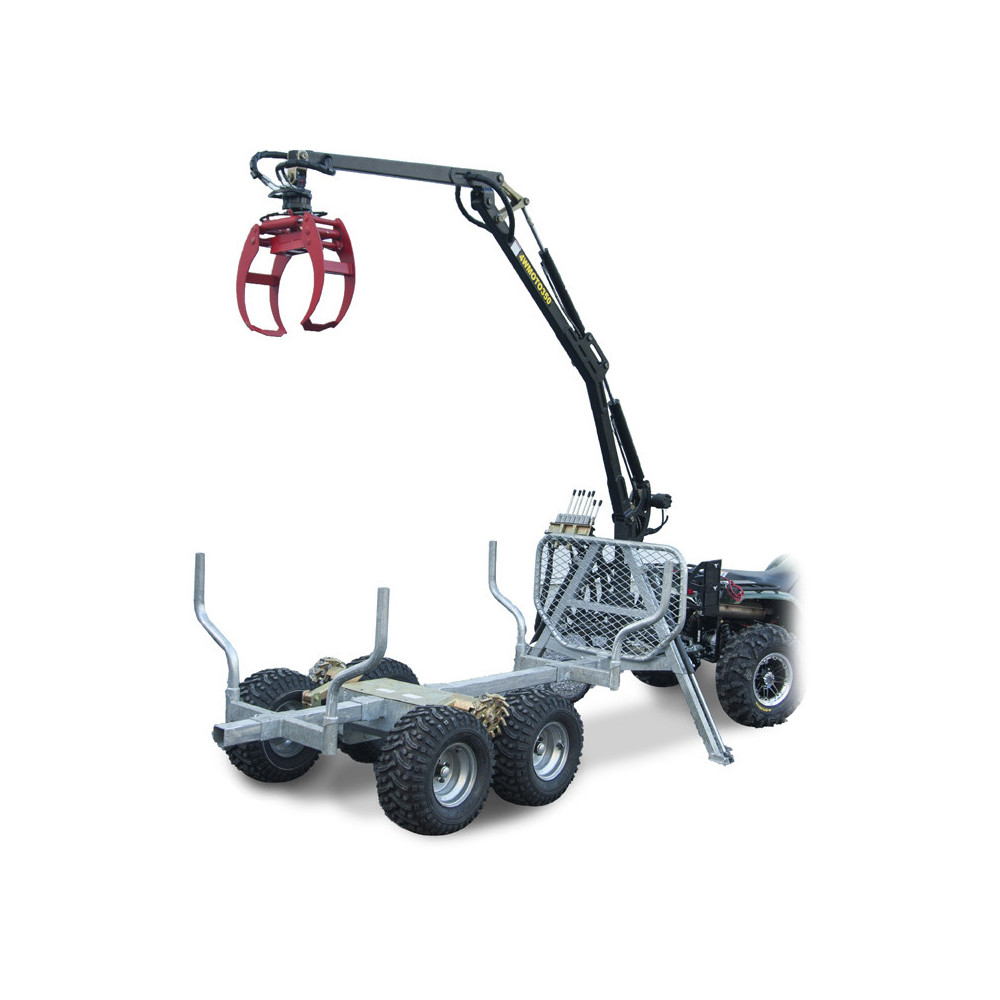

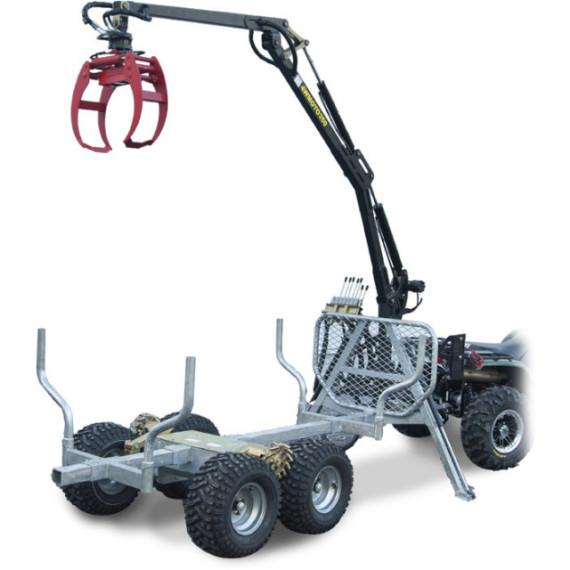

Bronco Grapple crane for ATV.
A powerful trailer with it´s own hydraulic system, wheel drive and hydraulic winch.
The 7,5hp Ducar gasoline engine provides the power neccessery to get the job done.
Generous ground-clearance and a bogie construction that works perfect with the hydraulic wheel drive that you engage when needed.
Hydrualic support legs to avoid tipping.
3,5m crane with a lifting capacity around 200kg. At 2m the capacity is around 300kg. Max. load capacity: 1500kg.
50mm rotable ball coupling.
Weight 890kg
Engine: Ducar 7,5hp
Pump capacity: 4ML/R
Work pressure: 16MPa
Hydraulic tank capacity: 5L
Suitable batteries:
Yuasa STD: 14-255
Motobatt STD: 14-511
BS Battery STD: 140-300619
We recommend hydraulic oil 553-83062 (20L) or 553-83061 (5L). Engine oil SAE 30: 553-83052 (1.5L).
