Hydraulic steering system Multiflex -115HP
Hydraulic steering system Multiflex -115HP

Hydraulic steering system Multiflex -115HP

Hydraulic steering system Multiflex -175HP
Multiflex OH-115U
High quality hydraulic steering system for outboards up to 115hp.

Steering pump:
Volume 16 cm3 | Max pressure 50 bar | non-return valve | 3/4 shaft

Cylinder:
Volume 92,5 cm3 | Stroke length: 184 mm | Mounting: 11

Steering wheel rotation: 5,3
Recommended steering wheel ?: 280mm
Min. width engine bay: 550mm (centered)

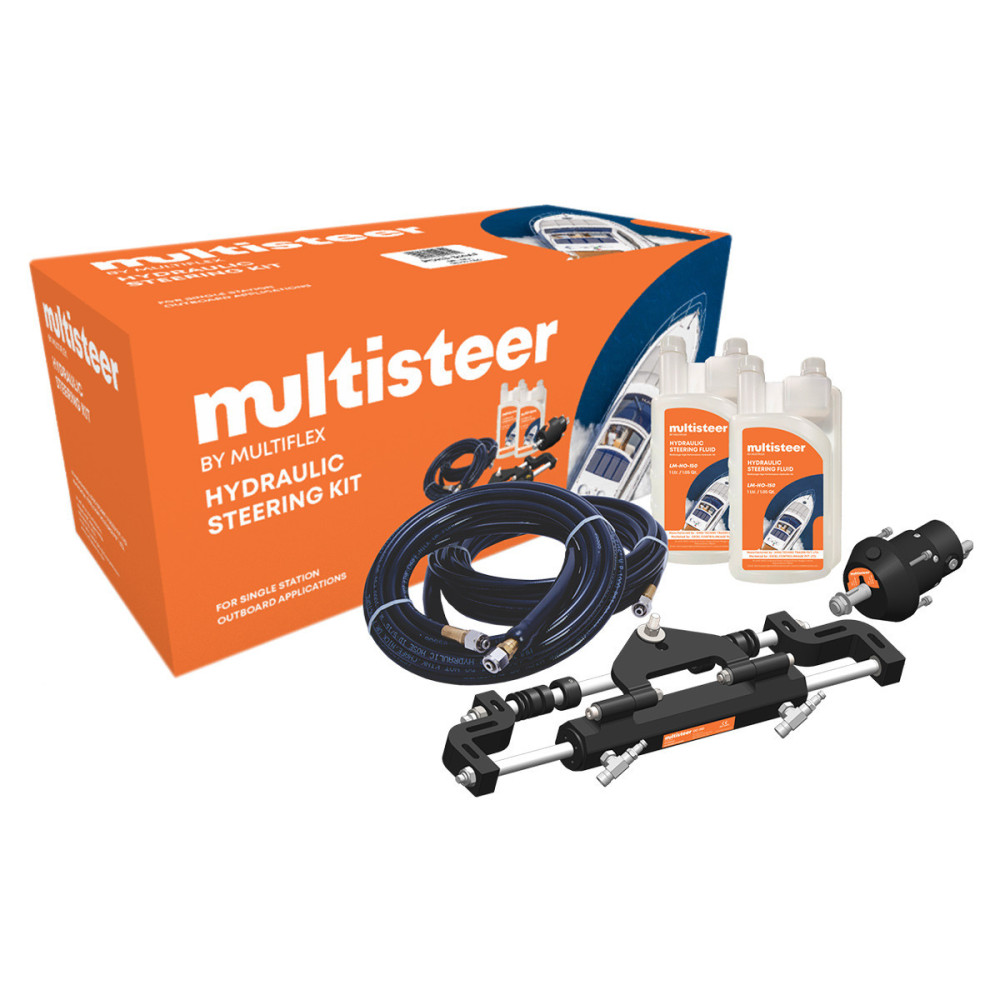

Includes:
HP-16 Flush Mount Hydraulic Helm Pump
OC-115U Single Balanced Front Mount Cylinder
HO-150 Hydraulic Steering Fluid 2 L
CT-5.0 Hydraulic Hose 2 x 5m with factory crimped hose connectors
" "464700
Les merShow less
kr 7,403.75
På lager
Referanse:
502-OH-115
Beskrivelse
Compatible Outboard Engines
YAMAHA Four Stroke 20-115 HP
YAMAHA Two Stroke 25-90 HP
MERCURY Four Stroke 20-115 HP
MERCURY Two Stroke 25-60 HP
SUZUKI Four Stroke 30-115 HP
SUZUKI Two Stroke 30-40 HP
HONDA Four Stroke 20-115 HP
EVINRUDE Four Stroke 30-115 HP
TOHATSU Four Stroke 15-115 HP
Les merShow less
