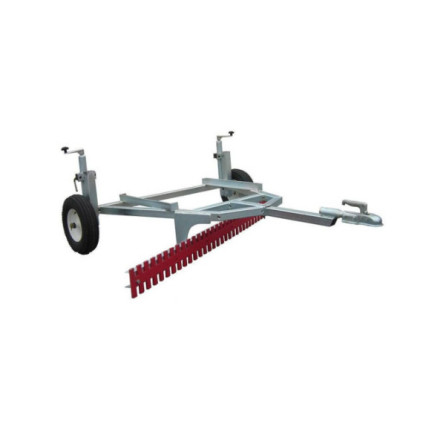

Cylinder operated Grader/Road scraper

Our sturdy road scraper with drawbar is perfect for your ATV. With a working width of 160 cm, it is ideal for leveling driveways and gravel roads. For park and street maintenance, this road scraper is also an excellent tool for walkways and yards.

The ATV road scraper with 3 interchangeable wear bars has a hot-dip galvanized chassis, making it both efficient and durable.

The individually height-adjustable wheels are easily controlled via a switch panel on the ATV's handlebar, providing a comfortable working position. Individual height adjustment of the wheels allows you to optimize the scraping surface for best results on gravel roads. This also allows for cambering, where the road is shaped higher in the center and slopes towards the sides, improving water drainage. The adjustable drawbar allows you to set the height in relation to your towing vehicle, providing more or less ground pressure. This ATV road scraper provides a rolling effect on the gravel, and with two serrated wear bars, you can even work on hard roads.

The ATV road scraper has a center section where extra weights can be added for increased ground pressure in rough terrain.

With three blades, the ground is worked several times, giving a smoother effect. This saves time and gives a better result.

- Replaceable wear bars made from C45/1.0503 steel
- Height-adjustable wheels
- Adjustable drawbar
- Extra weight holder for increased ground pressure (max 100kg)
- Frame material: 50x80x3mm
- Wear bars: 100x10mm
- Adjustment via switches on the ATV's handlebar
- 50mm ball coupling
- Own weight: 195kg
